RANGES AND SPEEDS
| The rig consists of 8 main axes: | ||
| Range | Max speed | |
| Track Rotate Lift Extend Angle Pan Tilt Roll |
depends on move
requirements unlimited + / - 45 degrees 1 m 250 degrees unlimited 270 degrees unlimited |
up to 2.0 m /
s up to 23 degrees / s up to 30 degrees / s up to 0.5 m / s up to 20 degrees / s up to 120 degrees / s up to 90 degrees / s up to 120 degrees / s |
| As well as computer control of | ||
| Camera Shutter Focus Zoom Iris |
0.01 Fps - 120
Fps depends on camera depends on lens depends on lens depends on lens |
|
And up to 8 extra channels for use with Model Movers
STANDARD PACKAGE
Included equipment in the standard package:
Standard Milo
Precision Track
Slimline head
Mitchell 35 camera ( specify BNCR or PV mount)
BNCR lens set (24mm, 35mm, 50mm, 85mm)
4"x 4" Arri matte box
Flair Software PC
9" colour monitor
MX50 mixer
SVHS player / recorder
PC operator
Camera operator

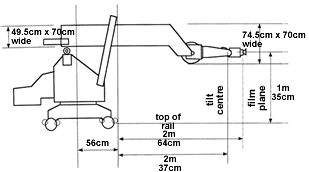

DIMENSIONS
 |
 |
WEIGHTS
| TOTAL WEIGHT OF ASSEMBLED RIG |
700Kg
|
| WEIGHT OF EACH 10' PRECISION RAIL |
100Kg
|
| WEIGHT OF EACH 8' MOY RAIL |
55Kg
|
| WEIGHT OF EACH 4'6" MOY RAIL |
28Kg
|
MAIN FLIGHT CASE DETAILS
| CASE NUMBER | SIZE (mm) | WEIGHT |
| A B C D E F G H |
700
x 1410 x 1340 1430 x 1205 x 1390 825 x 850 x 2730 455 x 1450 x 700 1330 x 540 x 830 945 x 550 x 940 1455 x 570 x 680 800 x 500 x 800 |
230Kg 267Kg 312Kg 131Kg 113Kg 134Kg 123Kg 113Kg |
Click here to see Milo gallery
POWER REQUIREMENTS
The whole system will run off 2 separate 13amp
domestic power sockets. (220 V) and draws 25Amps peak.
Adaptors can be supplied to run off 2 x 16 amp plugs or for use
abroad or from a generator. (7.5 K/W or above).
